Construction:

Tube: NBR compound synthetic rubber
Reinforcement: high tensile strength fabric with helix wire Independent foam
Cover: CR synthetic rubber.


Application:

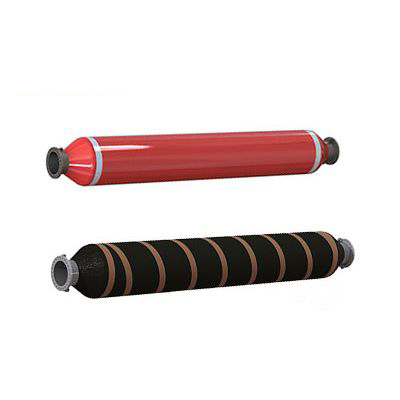

The floating marine oil hose is designed for transportation of crude oil and liquid petroleum products between loading and unloading vessels at offshore mooring systems.


Characteristic:

●Indepent foam floating casing to prevent water absorption
● CR outlayer with excellent resistance to abrasion ,UV,aging and corrosive environment.
●Easy installation and less maintenance
●Cutomized steel flanges are available
●rated working pressure: 21 bar
●minimum reserve buoyance: 20% or according to customer requirements
● electrical continuity: electrical continuous or discontinuous
●leak detection system: after the failure of the primary carcass, the detector will react to the leakage to remind the operator to remove the damaged hose to avoid economic loss and environmental pollution.

Standard:

The floating oil marine hoses are designed and produced in full accordance to OCIMF standard,the marine hoses are subjected to manufacturing and testing requirements dictated by ISO9000 quality standards.

Temperature:  -25℃ to +82℃


Certification: OCIMF
